• Rear axle, 4.56 ratio
• Transfer case, 2.64:1 2-speed, button-actuated full-time 4WD
• Four wheel drive
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Alternator, 125 amps
• Recovery hooks, 2 front and 1 rear
• Skid Plate Package includes skid plates for front and steering/suspension, transfer case and fuel tank
• GVWR, 6001 lbs. (2722 kg)
• Suspension, front, independent, heavy-duty with torsion bar
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs
• Steering, power, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc with a unique calibration for 4Lo

• Wheels, 5 - 16" x 7.5" (40.6 cm x 19.1 cm) aluminum
• Tires, P265/75R16 all-terrrain, blackwall
• Tire, full-size spare, rear swing-gate mounted
• Luggage rack side rails, roof-mounted
• Bumpers, front and rear steel (not jackable)
• Grille, chrome 7-slot
• Headlamps, dual composite halogen with automatic exterior lamp control
• Fog lamps, front, halogen
• Mirrors, outside power-adjustable, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver- and front passenger-side glass)
• Wipers, front intermittent, variable, wiper/washer
• Wiper, rear wiper/washer
• License plate provision, front includes bolts
• Body, driver-side-hinged swing gate with fixed glass

• Audio system, AM/FM stereo with 6-disc in-dash CD changer, seek-and-scan, digital clock, auto-tone control, speed-compensated volume and TheftLock. Includes (UQA) Monsoon performance-enhanced premium 7-speaker system (May be substituted with (UM8) AM/FM stereo with CD and DVD-integrated navigation.)
• Audio system feature, Monsoon performance-enhanced premium 7-speaker system with amplifier and rear subwoofer
• XM Radio. XM Radio includes 3 trial months of service. XM turns your world on with commercial-free music channels from Rock to Jazz, Country to Classical, Latin Pop to Hip Hop, and virtually everything in between, all in amazing digital sound. Turn on your favorite Sports with every Major League Baseball game from Opening Day until the World Series, NHL Hockey, the PGA TOUR and college football and basketball. Plus XM brings you the biggest names in news and talk, outrageous comedy, award-winning family programming -- wherever you go from coast to coast. Exclusive live concerts, Oprah and Friends, Radio Disney, and so much more. Find what turns you on (Available only in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. Visit gm.xmradio.com for more details.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) (Requires (UE1) OnStar.)

• Seats, front bucket includes driver power lumbar controls, adjustable outboard head restraints and map pockets on seatbacks (Includes (AG1) 8-way power driver seat adjuster, (AG2) 8-way power front passenger seat adjuster and (KA1) heated driver and front passenger seats.)
• Uplevel Decor includes (**3) leather with complementary piping seat and interior trim, first row and second row leather-appointed seats with (AG1) 8-way power driver seat adjuster, (AG2) 8-way power front passenger seat adjuster, (KA1) heated driver and front passenger seats and (NP5) leather-wrapped steering wheel
• Seat adjuster, driver 8-way power with power lumbar control
• Seat adjuster, front passenger 8-way power with power lumber control
• Seats, heated driver and front passenger
• Seats, rear 60/40 split-folding
• Console, floor includes removable tray
• Floor covering, carpet
• Floor mats, carpeted front, oversized
• Floor mats, carpeted rear seat, oversized
• Floor mat, carpeted cargo area, oversized
• Steering wheel, leather-wrapped
• Windows, power with driver Express-Down
• Retained accessory power
• Door locks, power
• Remote Keyless Entry with 2 transmitters and remote panic button
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASSlock II
• Air conditioning, single-zone manual
• Defogger, rear-window
• Glovebox, passenger-side
• Owners publication (Retail orders only)
• Cup holders, 2 front and 1 rear
• Power outlets, 3 auxiliary with covers, 12-volt, includes 2 front and 1 in the rear cargo area
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Visors, driver and front passenger includes vanity mirror on passenger side
• Assist handles, 5 total 1 A-pillar mounted for front passenger, 2 B-pillar and 2 overhead-mounted for outboard rear seats
• Lighting, interior with front and interior dome, reading, cargo, instrument panel courtesy, door switches and illuminated entry
• Cargo cover, fabric

• StabiliTrak, Stability Control System with Traction Control and hill start assist feature
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Notification, Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, a link to all Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com or call 1-888-466-7827 for system limitations and details. For a list of vehicles with Automatic Crash Notification visit onstar.com.)
• Daytime Running Lamps
• Tire Pressure Monitor (Does not monitor spare.)
• Horn, single-note

LUXURY PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

AUDIO SYSTEM, AM/FM STEREO

• with 6-disc in-dash CD changer
• seek-and-scan
• digital clock
• auto-tone control
• speed-compensated volume and TheftLock. Includes (UQA) Monsoon performance-enhanced premium 7-speaker system (STD)

UNIVERSAL HOME REMOTE

• includes garage door opener
• 3-channel programmable and (DH6) driver and front passenger visors with illuminated vanity mirrors

SEATS, FRONT BUCKET

• includes driver power lumbar controls
• adjustable outboard head restraints and map pockets on seatbacks (STD)

ENGINE, 3.7L DOHC 5-CYLINDER MFI

• (239 hp [178.2 kW] @ 5800 rpm
• 241 lb-ft of torque [325.3 N-m] @ 4600 rpm) (STD)

WHEELS, 5 - 16" X 7.5" (40.6 CM X 19.1 CM) ALUMINUM

• (STD)

TIRES, P265/75R16 ALL-TERRRAIN, BLACKWALL

• (STD)

TRAILERING EQUIPMENT

• includes trailer hitch and wiring harness

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• (STD)

• Suspension Package
• Handling/Trailering
• heavy-duty
• Engine
• 3.7L DOHC 5-cylinder MFI (239 hp [178.2 kW] @ 5800 rpm
• 241 lb-ft of torque [325.3 N-m] @ 4600 rpm)
• Rear axle
• 4.56 ratio
• Transfer case
• 2.64:1 2-speed
• button-actuated full-time 4WD
• Battery
• heavy-duty 590 cold-cranking amps
• maintenance-free with rundown protection
• Alternator
• 125 amps
• Recovery hooks
• 2 front and 1 rear
• Skid Plate Package includes skid plates for front and steering/suspension
• transfer case and fuel tank
• GVWR
• 6001 lbs. (2722 kg)
• Suspension
• front
• independent
• heavy-duty with torsion bar
• Suspension
• rear semi-floating axle with 2-stage multi-leaf springs
• Steering
• power
• rack-and-pinion
• Brakes
• 4-wheel antilock
• 4-wheel disc with a unique calibration for 4Lo
• Tire
• full-size spare
• rear swing-gate mounted
• Luggage rack side rails
• roof-mounted
• Bumpers
• front and rear steel (not jackable)
• Grille
• chrome 7-slot
• Headlamps
• dual composite halogen with automatic exterior lamp control
• Fog lamps
• front
• halogen
• Mirrors
• outside power-adjustable
• manual-folding
• Glass
• Solar-Ray deep-tinted (all windows except light-tinted glass on windshield
• driver- and front passenger-side glass)
• Wipers
• front intermittent
• variable
• wiper/washer
• Wiper
• rear wiper/washer
• License plate provision
• front includes bolts
• Body
• driver-side-hinged swing gate with fixed glass
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) (Requires (UE1) OnStar.)
• Seats
• rear 60/40 split-folding
• Console
• floor includes removable tray
• Floor covering
• carpet
• Floor mat
• carpeted cargo area
• oversized
• Windows
• power with driver Express-Down
• Retained Accessory Power
• Cruise control
• electronic with set and resume speed
• Theft-deterrent system
• vehicle
• PASSlock II
• Air conditioning
• single-zone manual
• Defogger
• rear-window
• Glovebox
• passenger-side
• Owners publication (Retail orders only)
• Cup holders
• 2 front and 1 rear
• Power outlets
• 3 auxiliary with covers
• 12-volt
• includes 2 front and 1 in the rear cargo area
• Mirror
• inside rearview auto-dimming with 8-point compass and outside temperature display
• Assist handles
• 5 total 1 A-pillar mounted for front passenger
• 2 B-pillar and 2 overhead-mounted for outboard rear seats
• Lighting
• interior with front and interior dome
• reading
• cargo
• instrument panel courtesy
• door switches and illuminated entry
• Cargo cover
• fabric
• StabiliTrak
• Stability Control System with Traction Control and hill start assist feature
• Steering column
• Tilt-Wheel
• adjustable with brake/transmission shift interlock
• Air bags
• frontal
• driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System
• children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags
• head curtain side-impact
• front and rear outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size
• even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Daytime running lamps
• Tire Pressure Monitor (Does not monitor spare.)
• Horn
• single-note

• Vehicle
• Rear Door Type: Swing gate
• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3050
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2348
• Curb Weight - Rear (lbs): 2348
• Gross Vehicle Weight Rating Cap (lbs): 6001
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 450
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Semi-floating
• Spring Capacity - Front (lbs): 3050
• Spring Capacity - Rear (lbs): 3200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3050
• Axle Capacity - Rear (lbs): 3250
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 0.98
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.4 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 12.3 x 0.5
• Tires
• Front Tire Order Code: QAX
• Rear Tire Order Code: QAX
• Spare Tire Order Code: - TBD -
• Front Tire Size: P265/75R16
• Rear Tire Size: P265/75R16
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 2194
• Rear Tire Capacity (lbs): 2194
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7.5
• Rear Wheel Size (in): 16 x 7.5
• Spare Wheel Size (in): 16 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr rack and pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 37.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 23
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 111.9
• Length, Overall w/rear bumper (in): 187.5
• Width, Max w/o mirrors (in): 85.0
• Height, Overall (in): 73.2
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground Clearance, Front (in): 9.1
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 60.1
• Cargo Area Length @ Floor to Seat 2 (in): 24.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 42.1
• Cargo Box (Area) Height (in): 36.4
• Cargo Volume to Seat 1 (ft³): 62.9
• Cargo Volume to Seat 2 (ft³): 25.0
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.9
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.9
• Front Shoulder Room (in): 54.4
• Front Hip Room (in): 53.8
• Second Head Room (in): 39.5
• Second Head Room (in): 39.8
• Second Leg Room (in): 36.1
• Second Shoulder Room (in): 53.5
• Second Hip Room (in): 48.1
• Summary

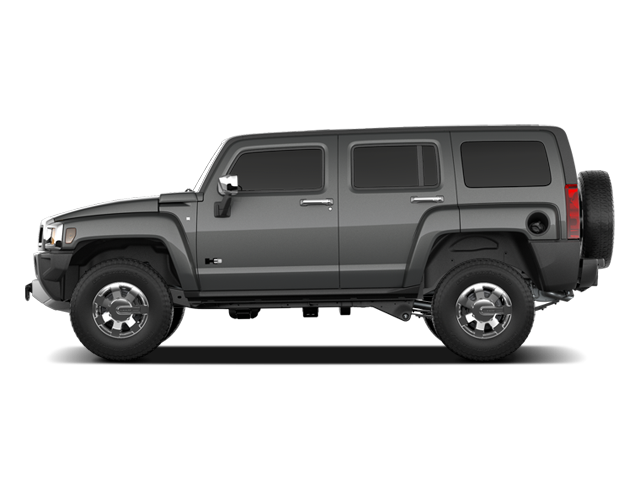

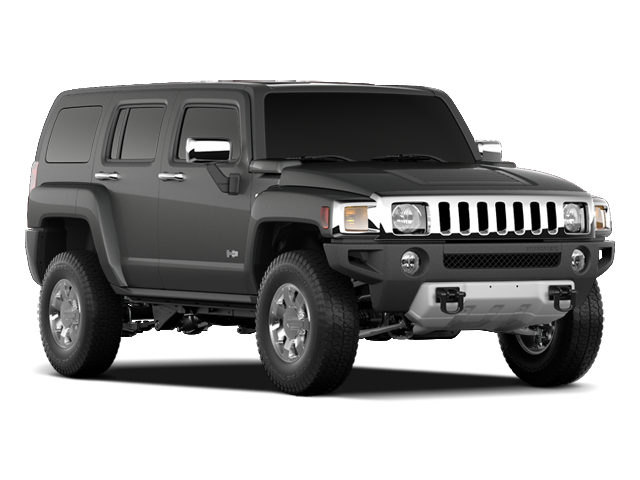

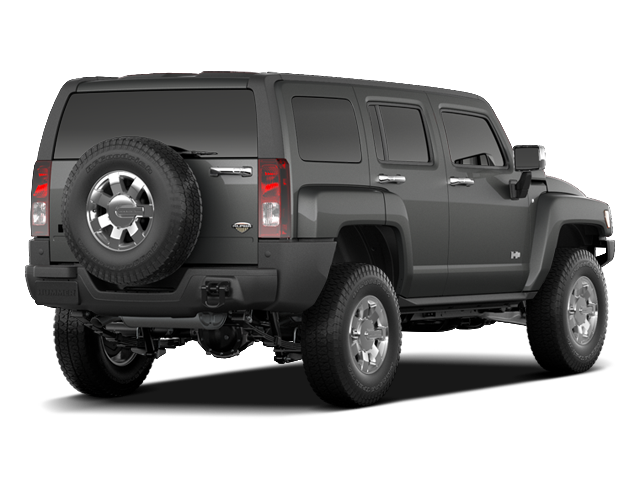

• Vehicle Name: HUMMER H3
• Vehicle Name: HUMMER H3
• Body Style: 4 Door SUV
• Body Code: 111.9" WB
• Emissions
• EPA Greenhouse Gas Score: 3
